Wire Steel Fiber Forming Cutting Machine

Product Description

High level steel fiber forming cutting machine

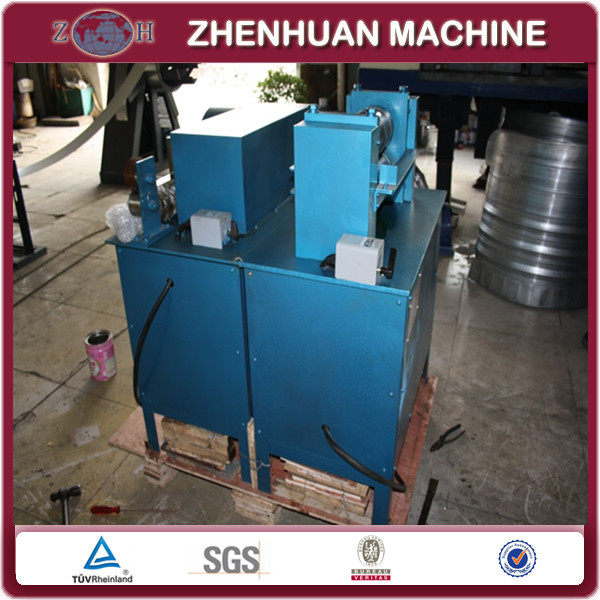

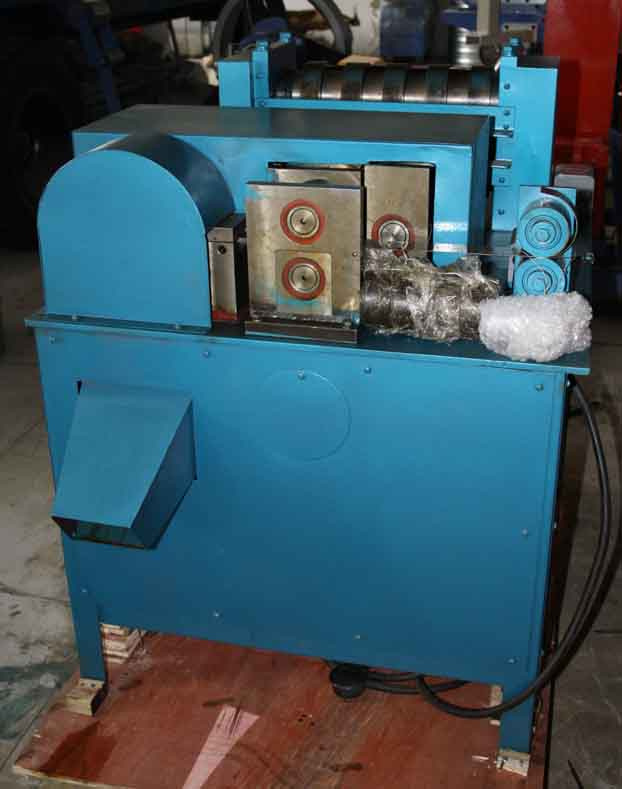

             picture of the High level steel fiber forming cutting machine

I Description of the High level steel fiber forming cutting machine

This ZH-10 machine is for forming & cutting steel fibers mainly used for reinforcement concrete. It can release post-tension inside the steel wire, strengthen steel wire, feed wire in uniform speed, form into certain shape, cut-to-length, etc. This machine also is also combined with the grinding device for grinding cutting tools.

By quickly changing different moulds, the machine can produce wave shape, hook shape, twisting shape, etc.

II Main technical data of the High level steel fiber forming cutting machine

2.1 Driving motor power: 2.2kW

2.2 Max. length: 60mm

2.3 Max. diameter: 1.0mm (carbon steel)

2.4 Tensile strength of steel fibre: 1100MPa

2.5 Productivity: about 2~2.4 tons per 24 hours (by feeding 15 wires together)

2.6 Machine weight: 270kg

2.7 Dimension: about 1700 x 760 x 1000mm

III Price of the High level steel fiber forming cutting machine

Price basis: FOB Shanghai

Payment: 30% down payment by T/T in advance, the balance by T/T against fax copy of B/L

Lead-time: within 30 days after receiving down payment

Note: Above price already includes three set of moulds for hook, straight and wave types. If need other moulds, extra cost will be USD 800 per set.

IV Guarantee of the High level steel fiber forming cutting machine

Within one year since the date of B/L

Our company will be your reliable and professional supplier of the post-tension steel pipe making machine in China. We have been in this line for more than 10 years and have provided the corrugated post-tension tube forming machines to many countries all over the world!
