| Prod Model: |
GSJ-03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Code: |
Gq-40 |
| Suitable Round Steel Diameter: |
6-40mm(Q235-a) |
| Suitable Max. Rebar Diameter: |
5-32mm(Q235-a) |
| Producing Speed: |
20PCS/Min |
| Machine Code2: |
Zh-36 |
| Suitable Range Of Bolt Diameter: |
12-36mm |
| Suitable Range Of Bolt Length: |
10-300mm |
| Machine Code 3: |
Z28-150 |
| Suitable Max. Bolt Diameter: |
58mm |
| Suitable Min. Bolt Diameter: |
5mm |
Product Description
PRICES AND SALES CONDITIONS
Prices:
| Sr. | Item | Qty. | Unit Price (USD) |
| 1 | Cutting machine | 1 set |
|
| 2 | Reducing machine | 1 set |
|
| 3 | Thread rolling machine | 1 set |
|
| 4 | Bending machine | 1 set |
|
| Total price |
|
|
Sales conditions:
Price basis: FOB Shanghai Port, except molds
Payment: 30% down payment by T/T, the balance by T/T before shipment
Lead-time: within 50 days after receiving down payment
Term of validity: 30 days
Note: This price is net FOB price, excluding mounting and adjusting costs abroad. Should such service need, the relative costs and charges will be borne by buyers.
Guarantee: within one year since the date of B/L
Steel Cutting Machine
I Description of the machine
This machine is used for cutting round steel.
II Main technical data
| Item | Data |
| Machine code | GQ-40 |
| Suitable round steel diameter | 6-40mm(Q235-A) |
| Suitable Max. rebar diameter | 5-32mm(Q235-A) |
| Producing speed | 20pcs/min |
| Main driving motor power | 2.2kW |
| Machine dimension | About 400mm x 1200mm x 700mm |
| Weight of machine | About470kg |
Reducing Machine
I Description of the machine
This machine is used for making mine anchor bolts, anchor screws. It can be made raw materials diameter to be specific wire diameter, and enhance the density, length and strength.
II Main technical data
| Item | Data |
| Machine code | ZH-36 |
| Suitable range of bolt diameter | 12-36mm |
| Suitable range of bolt length | 10-300mm |
| Master cylinder pressure | 40T |
| Producing speed | About 5-10pcs/min |
| Main driving motor power | 15kW |
| Cooling motor power | 0.125kW |
| Machine dimension | 1600mm x660mm x 1200mm |
| Weight of machine | About1500kg |

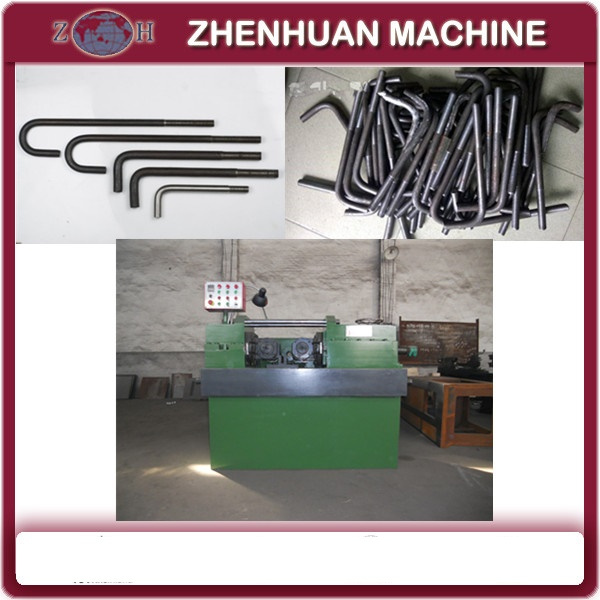

Thread Rolling Machine
I Description of the machine
This machine is for rolling thread on rods.
II Main technical data
| Item | Data |
| Machine code | Z28-150 |
| Max. hydraulic pressure | 150KN |
| Suitable max. bolt diameter | 58mm |
| Suitable min. bolt diameter | 5mm |
| Producing speed | About 15 pcs/min |
| Max. main spindle center distance | 120-240mm |
| Feeding Stroke | 0-8mm |
| Main driving power | 7.5kW |
| Machine dimension | 1500 x1380 x 1440mm |
| Weight of machine | 1850kg |
Bending Machine
I Description of the machine
This machine is for bending anchor bolts..
II Main technical data
| Item | Data |
| Machine code | WQJ-40 |
| Suitable max. bolts diameter | 40mm |
| Working dish speed. | 7rpm |
| Producing speed | About 10 pcs/min |
| Total power | 3.0kW |
| Machine dimension | 800mm x700mm x 720mm |
| Weight of machine | 400kg |
