Screw Diameter:
90mm
Length/Diameter Ratio:
18.9
Shot Size(Theoretical):
2487cm3
Injection Weight:
2266 G
Injection Rate:
560 G/S
Plasticizing Capacity:
118 G/S
Injection Pressure:
132 MPa
Clamping Force:
5000 Kn
Toggle Stroke:
770 mm
Ejector Stroke:
240mm
Type:
Tube Head Injection
Structure:
Vertical and Horizontal Composite
Plastic Type:
Thermoplastic
Plasticizing Way:
Screw Type
Clamping Way:
Hydraulic & Mechanical
Automation:
Automatic
Computerized:
Computerized
Certification:
UL
Product Description

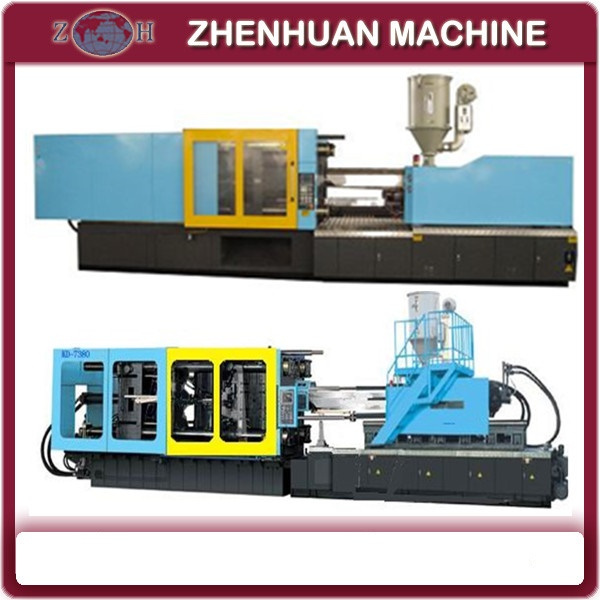

Horizontal Injection Molding Machine
I Description of horizontal injection molding machine This machine is currently the best cost-effective injection molding machinery, can be used for a variety of thermoplastic plastic (nylon, ABS, 372, polypropylene, polystyrene) processing, widely used in automotive, instrumentation, electronics, telecommunications, toys, daily necessities and other parts injection molding. II characteristics of horizontal injection molding machine This series of machine design reference to the advantages of domestic and international famous brands of advanced models, with excellent material, advanced structure, beautiful appearance, simple operation, convenient adjustment, easy to repair, with electrical control and reliable, advanced hydraulic component characteristics of durable, stable operation, reliable machine. 1. The operation method contain manual, semi-automatic, fully automatic and so on. 2. The safety door electrical, mechanical protection device, to ensure safety in production. 3. The injection screw and heating cylinder are made of high quality nitride steel, it has wear resistance, corrosion resistance. 4. Oil motor automatic gear die adjustment, five-star hydraulic motor directly driving screw plasticizing, and variable, plasticizing properties. 5. Five fulcrum inclined double toggle clamping hydraulic machinery, motion characteristics, high speed and energy saving. 6. High performance hydraulic valve, 24V DC control. III Main technical data of horizontal injection molding machine 3.1 Injection part
Item
Data
A
B
C
Screw Diameter
80mm
85mm
90mm
Length/diameter ratio
21
20
18.9
Shot size(theoretical)
1965 cm3
2218 cm3
2487cm3
Injection weight
1788 g
2018 g
2266 g
Injection rate
442 g/s
499 g/s
560 g/s
Plasticizing capacity
80 g/s
100 g/s
118 g/s
Injection pressure
168 MPa
149 MPa
132 MPa
Screw speed
0-130rpm
3.2 Clamping part
Item
Date
Clamping force
5000 KN
Toggle stroke
770 mm
Space between tie-bars
820×800 mm
Max. mold height
810 mm
Min. mold height
330 mm
Ejector stroke
240 mm
Ejector tonnage
150KN
Ejector number
13
3.3 Others
Max. pump pressure
16MPa
Pump motor power
55kW
Barrel heating power
31.4kW
Machine weight
About 20000kg
Machine dimension
7660 x 1880 x 2690mm
