| Prod Model: |
24D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |

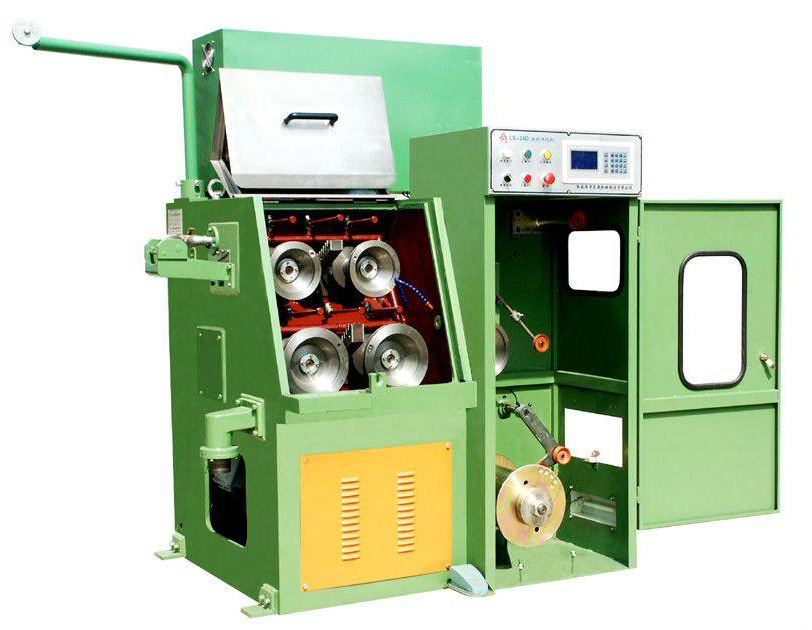

Metal Rolling&Drawing Machine |
Product Description
Stepless transmission control with inverter
Electromegetic braking automatic wire broken
Or full beam stop
| Products models | B22 | B24 |
| Line speed | Max2700m/min | Max2700m/min |
| Inlet wire | 0.4—1.2mm | 0.4—1.2mm |
| Main motor | Stepless transmission control with inverter |
| Finish dia | 0.10—0.45mm | 0.08—0.45mm |
| Spool capacity | 20—80kg | 20—80kg |
| Brake | Electromegetic braking automatic wire broken or full beam stop |
| Eye die holder | Adjustable in up-down and front-back direction |
| No. of dies | 22 | 24 |
| Capstan | Ten ceramic layer | Eleven ceramic layer |
| Reduction rate | 15% | 13% |
| Power consumption | 15—20kw | 15—20kw |
| Dimension | 2000*1800*1890 | 2000*1800*1890 |
| weight | 2300kg | 2300kg |
