| Prod Model: |
14DT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wire Size: |
1.6-0.4mm |
| Usage: |
Wire |
| Type: |

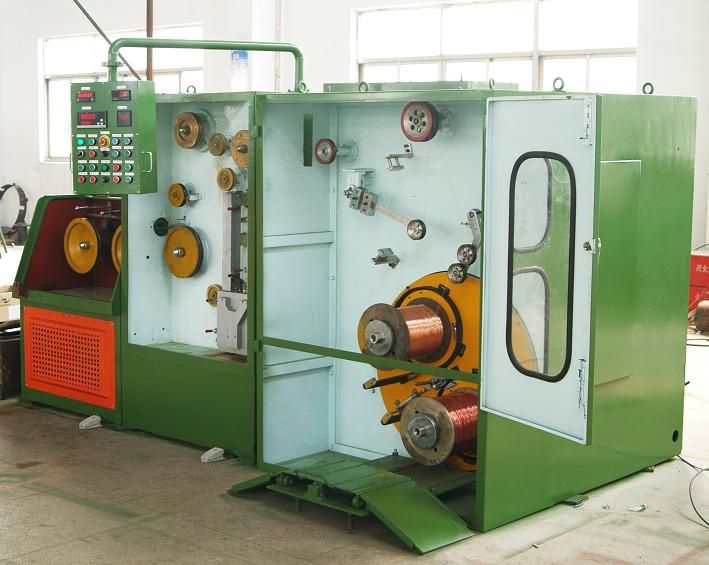

Horizontal Metal Drawing Machine |
Product Description
Copper, aluminum, copper
Clad aluminum, copper clad steel
From 1.6-0.4mm
With annealing
Drawing material: Copper, aluminum, copper clad aluminum, copper clad steel
|
Products Models |
14T |
|
Wire Finished |
0.25mm-0.45mm |
|
Inlet Dia |
1.2mm-1.6mm |
|
Drawing material |
copper,aluminum,copper clad aluminum,copper clad steel |
|
Drawing Line Speed |
1200mpm/max |
|
Drawing Dies NO./max |
14 |
|
Slip Ratio Of M/c |
15% |
|
Main Moto |
15KW |
|
Take-up drive Motor |
5.5KW |
|
Annealing capcity |
16KVA |
|
Spooler Dimension |
OD310mm/max |
|
Max.loading Capacity |
50KG |
|
Brake |
Magnetic brake |
|
Annealing mode |
AC(DC )Annealing |
|
Power Source |
380V 50Hz |
|
Machine Dimension(Mm) |
2600*1600*1900mm |
|
Take-up type |
Dual take-up spools |
|
Weight |
2000KG |
|
Payment |
T/T |
|
MOQ |
1units |
|
Output/24H |
754KG~~2444KG/MAX |
