| Prod Model: |
JSG-50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Cold: |
Gsj 50 |
| Diameter Of Spindle: |
35mm |
| Max. Hydraulic Pressure: |
8MPa |
| Suitable Max. Steel Bar/Tube Diameter: |
50mm |
| Suitable Min. Steel Bar/Tube Diameter: |
20mm |
| Suitable Steel Tube Wall Thickness: |
Min. 2mm |
| Suitable Thread Pitch: |
0.5-4mm |
| Accuracy Of Threading: |
±0.10mm |
| Total Power: |
5.2kw |
| Weight Of Machine: |
850kg |
Product Description

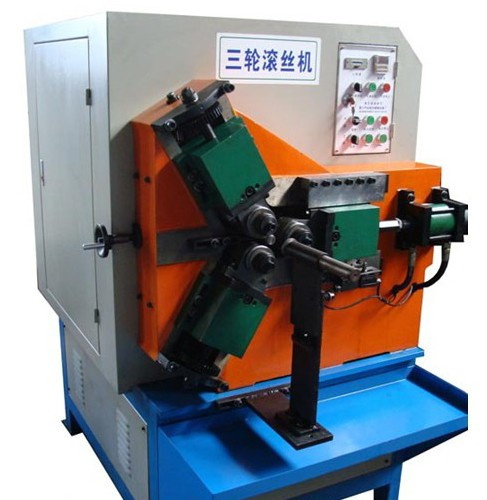

I Description of the machine
This machine is for rolling full thread on rods.
This machine is hydraulic driven, stable rolling quality.
The machine is comprised of high-strength steel structure, three-axis-linkage gearbox, universal coupling, main driving motor, control system and hydraulic system.
II Main technical data
| Item | Data |
| Machine code | GSJ-50 |
| Diameter of spindle | 35mm |
| Max. hydraulic pressure | 8MPa |
| Suitable max. steel bar/tube diameter | 50mm |
| Suitable min. steel bar/tube diameter | 20mm |
| Suitable steel tube wall thickness | Min. 2mm |
| Suitable thread pitch | 0.5-4mm |
| Accuracy of threading | ±0.10mm |
| Total power | 5.2kW |
| Machine dimension | 1700mm x 2000mm x 1400mm |
| Weight of machine | 850kg |
Our company is an manufacturer and export agent, specialized in cold roll forming machines, metal processing machines, tube machines, pipe machines, transformer making machines, fin making machines, wire bending machines, motor making machines, tank making machines, welding machines, etc. We are supply our customers worldwide with our good qualities, competitve prices and satisfied after-sale services.
Our company is an manufacturer and export agent, specialized in cold roll forming machines, metal processing machines, tube machines, pipe machines, transformer making machines, fin making machines, wire bending machines, motor making machines, tank making machines, welding machines, etc. We are supply our customers worldwide with our good qualities, competitve prices and satisfied after-sale services.
