| Prod Model: |
XLB-Q/D1200x1200x1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
General Rubber Machinery |
| Type Of General Rubber Machinery: |
Material Processing Machine |
| Type Of Tire Machinery: |
Rubber Regeneration Machinery |
| Weight: |
<50 tons |
| Power: |
10~100KW |
| Voltage: |
380V |
| Using Life: |
≥15 Years |
| Warranty: |
1 Year |
| Name: |
Rubber Hydraulic Press |
| Max. Pressure Of Working Oil: |
160kg/Cm2 |
| Structure: |
Frame Type |
Product Description

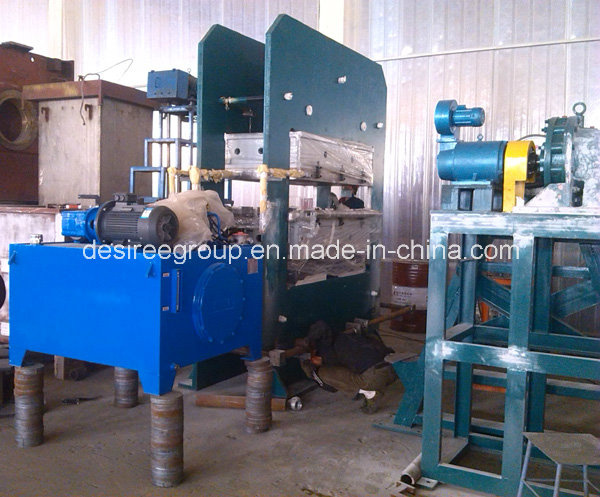

Rubber Hydraulic Press Rubber Sheet Making Machine
Function:
1. Used for pressing all kinds of rubber model products, rubber plate, thermostting plastic. Such as doormat, o-ring, seal, rubber sheet and so on.
2. Used as common hydraulic machine.
Technical Parameters:
| Model No. | XLB-Q/D1200x1200x1 | XLB-Q/D1000x1000x1 | XLB-Q/D850x750x1 |
| Total pressure(kN) | 3150 | 2500 | 1600 |
| Max. working pressure of working oil(MPa) | 16 | 16 | 16 |
| Max. stroke of piston(mm) | 300 | 400 | 250 |
| Piston diameter(mm) | 500 | 450 | 360 |
| Hot platen size(mm) | 1200x1200 | 1000x1000 | 850x750 |
| Layer quantity | 1 | 1 | 1 |
| Hot platen clearance (mm) | 560 | 400 | 125 |
| Heating temperature(°C) | 140 to 160 | 140 to 160 | 140 to 160 |
| Motor power(kW) | 7.5 | 5.5 | 3 |
| Steam pressure(MPa) | 0.6 to 0.8 | 0.6 to 0.8 | 0.6 to 0.8 |
| Electrical heating power of each hot platen(kW) | 24.1 | 10.8 | 9 |
| Total weight(kg) | 8000 | 6000 | 4100 |
Features:
1. Mainly consists of main machine, hydraulic system and electrical system.
2. Frame type, with bottom hydraulic cylinder.
3. Adopts hydraulic drive, electric relay control, the curing time and pressure can be adjusted.
4. The oil tank was arranged at the left side, avoid of the influence of hot platen temperature.
5. Can provide hand control and electric control as customer's request.
6. There are two kinds of heating method for hot platen, steam heating and electric heating.
7. The hot platen clearance can be designed as per the size of product & mould.
Advantage:
1. Compact structure, less occupied area.
2. High working pressure
3. High producing efficiency
4. Easy to install. Operation is safe and reliable.
WE CAN DESIGN AND MANUFACTURE NON-STANDARD MODELS AS PER THE REQUIREMENT OF CUSTOMERS.
