| Prod Model: |
PS-(Roll-on Ball) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic Machine: |
Bottle Blow Machine |
| Making Method Of Parison: |
Extrusion-Blow Molding |
| Raw Material: |
HDPE |
| Certification: |
ISO9001:2008 |
| Automation: |
Automatic |
| Computerized: |
Computerized |
Product Description
The whole production line Including:

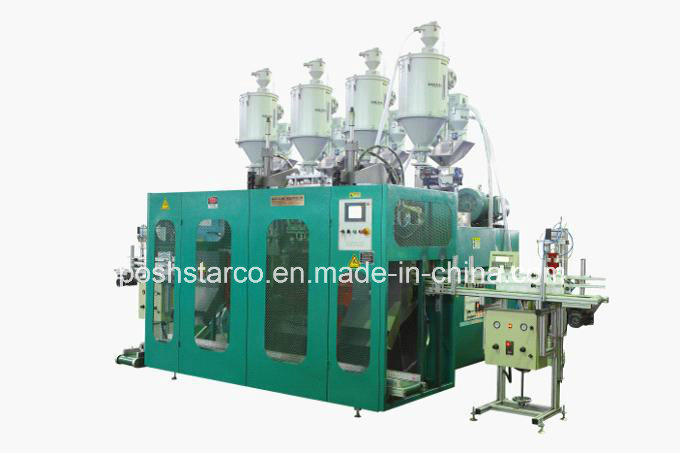

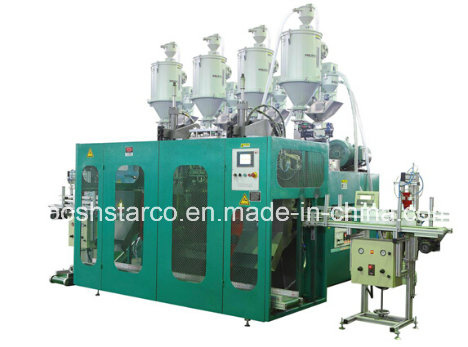

Blow moulding machine:
Double station, 4 die-headMOOG-100points
Productivity: 650pcs per hourStandard mould wih de-flashing system
Grinding machine
Polishing machine
Dryer
Hopper loader for material
Crusher
Hopper dryer
Mixer (new & recycle material)
Proprtional valve
Conveyor & loader to crusher 4m+3m
Container for colleting the ball
Air compressor & IR dryer & air filter &air tank
| Parameters |
|
|
| Specifications |
| PS-75-4D |
| Material |
| PE/PP/LDPE/HDPE |
| Max container capacity | L | 12 |
| Number of die | set | 4 |
| Output(dry Cycle) | pc/hr | 500X2 |
| Machine Dimension(L×W×H) | M | 3.9x3.6x3.6 |
| Total weigh | ton | 10.5 |
| Clamping Unit |
| PS-75-4D |
| Clamping force | KN | 120 |
| Platen opening stroke | mm | 200-550 |
| Platen size | mm | 500x550 |
| Max mould size(W×H) | mm | 550x500 |
| Mould thickness | mm | 210-320 |
| speed of clamping | mm/sec. | 260 |
| speed of opening | mm/sec. | 260 |
|
|
|
| Power |
| PS-75-4D |
| Max drive | KW | 30 |
| Total power | KW | 71.5 |
| Fan power for screw | KW | 1.5 |
| Air pressure | Mpa | 0.6-0.8 |
| Air consumption | m³/min | 1.2 |
| Average energy consumption | KW | 26.5 |
| Extruder unit |
| PS-75-4D |
| Screw diameter | mm | 75 |
| Screw L/D ratio | L/D | 25 |
| Plasticising capacity | Kg/hr | 100 |
| Number of heating zone | zone | 4 |
| Extruder heating power | KW | 16 |
| Extruder driving power | KW | 30 |
| Rotate speed of screw | rev / min | 9-87 |
| Drive Form |
| transducing speed |
| Speed-down Box |
| Alloy steel gear |
| Screw barrel material |
| 38CrMoAlA(High quality steel) |
| Screw bolt head: |
| plating horniness alloy steel |
| heater |
| Casting Aluminium heater |
| Die |
| PS-75-4D |
| Number of heating zone | zone | 4--5 |
| Power of die heating | KW | 10.8 |
| Max die-pin diameter(4) | mm | 50 |
| Center distance of double die(4) | MM | 85 |
| Diehead structure |
| Storing material jar |
| flowing form |
| First by first element |
| mainly forming part material |
| 38CrMoAlA;42CrMo |
| Hydraulic system |
| PS-75-4D |
| Rated pressure1A | Mpa | 16 |
| Rated flux1A | L/min | 10 |
| Rated pressure2A | Mpa | 6 |
| Rated flux2A | L/min | 65 |
| Hydraulic pump drive power | KW | 7.5 |
| Rated pressure1B | Mpa | 16 |
| Rated flux1B | L/min | 10 |
| Rated pressure2B | Mpa | 6 |
| Rated flux2B | L/min | 65 |
| Hydraulic pump drive power | KW | 7.5 |
| Upward-Downward of the pedestal |
| PS-75-4D |
| Upward-downward distance | mm | 390 |
| The speed of Upward-downward | mm/min | 30 |
| Electrical Equipment |
| PS-75-4D |
| Touch screen man-machine interface |
| HITECH/Taiwan |
| PLC |
| MITSUBISHI/Japan |
| Transducer |
| MITSUBISHI/Japan |
| Temperature controller |
| OMROM/Japan |
| Air Switch |
| Schneider/France |
| electronic rule |
| GEFRAN/Itlay |
| Relay |
| Schneider/France |
| Button Switch |
| Schneider/France |
| Electricity machine |
| SIEMENS/Germany |
| Contactor |
| Schneider/France |
| Hydraulic Pressure Part |
| PS-75-4D |
| Oil pump |
| YUKEN/Japan |
| Hydraulic pressure valve |
| YUKEN/ TAIWAN |
| Airproof |
| VALAVA/Japan |
| Oil tube connector |
| lianhui/ TAIWAN |
| Air Drive Part |
|
|
| Air diver component |
| AIRTAC /TAIWAN |
