Name:

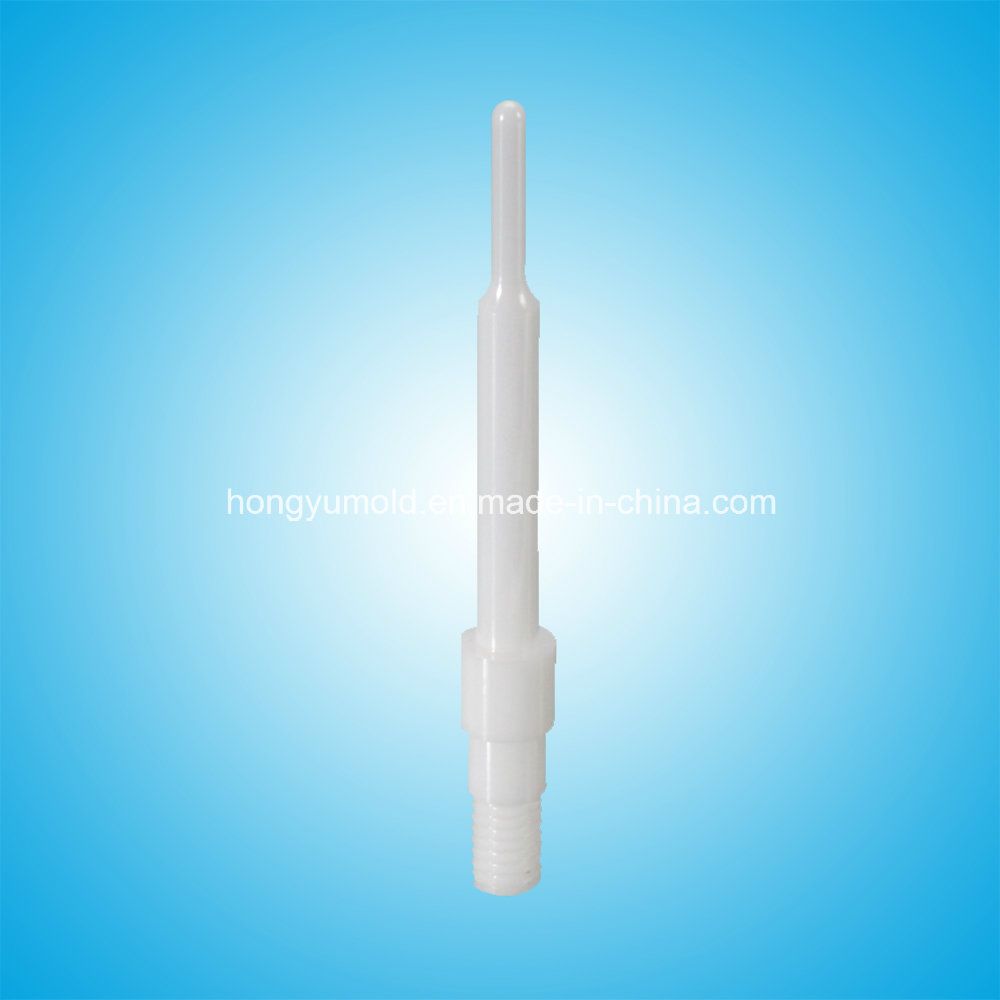

Ceramics Pin
Processing Way:
Grinding
Size:
Dia5*50mm
Tolerance:
0.002mm
Process:
Separation Process
Industry:
General Stamping
Type:
Progressive Die
Processing Type:
Grinding
Material:
Ceramic
Tolerances:
0.002mm
Product Description
Special Introductions: 1. Material Property:
Chinese ceramics, non-standard round parts, please refer to the below table:
Components:
Material Identify Report
Components
Content(wt%)
ZrO2
94.8
YzO3
5.2
FeO3
0.0026
SiO2
0.0024
NaO
0.001
Other
0.001
Material Index:
Item
Unit
Standard Specification
Principle Material
wt%
Zr02 94.8%
Bulk Density
g/em3
≥6.0
Color
Milky White
Hardness
HRA
90
Flexural Strength
Mpa
>900
thermal conductivity
W/m.k
3
coefficient of linear expansion
1/ºC(200ºC)
>10.5*10-5
Dielectric Strength
Kv/mm
Fracing Toughness
MPam0.5
8~12
Volume Resistivity
1.5*1012
Fire Resistant
ºC
400
2. Processing
external centerless grinding, grinding with punch machine, screw at the bottom area with grinding.
3. Quality Check
We have well-equipped QC department, and we do full QC for every part.
If you want to know more, please contact us!
HONGYU Mould Co., Ltd specializes in high precision parts for press molding/ Punching molding/ tungsten carbide molding component/metal tools/ Motor core dies/ SMD mould/ Connector molding parts/ tungsten, steel mold grinding/CNC optical profile grinding/ CNC wire cutting
Manufacturing/precision elec. Discharge
Machining/processing plastic molding component/mirror surface processing/electric pieces of wire cutting machines. Last year we have developed good CNC grinding surface S0.2 (Ra0.04um) with high accuracy quality.
In possession of well known imported equipment including Swiss CNC wire cutting machines/ Sodick wire cutting machine/ Japanese CNC profile grinding machines/Taiwanese elec. Discharge machines/ Taiwanese surface grinding machines and other machines, we can provide high quality, reasonable price products and best service in time.

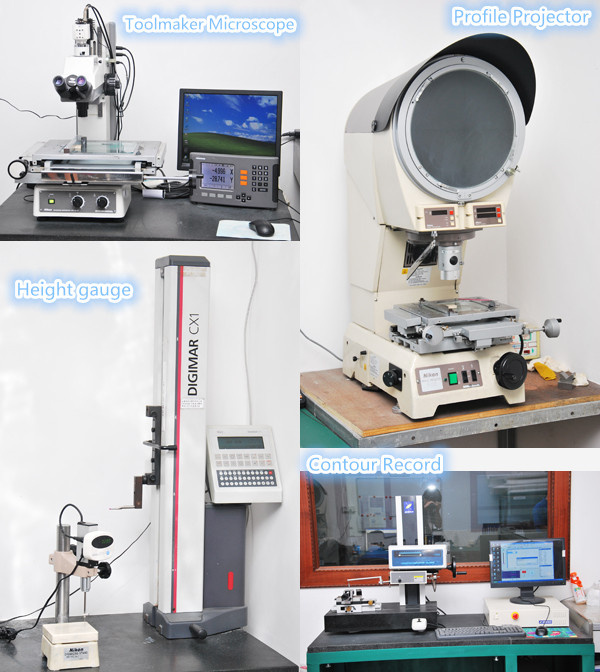

Our company persists in the principle of "customers as the center, quality as the basement of company's development and service". For finished products, we set up necessary professional testing and measuring equipment including NIKON-V1213 projector, Accretech Contourecord 1600G, Nikon Dig micro altimeter MS-11C, Mitutoyo dig micrometer caliper IP65 and Toolmaker Microscope CURO VM-GI.
We are one of most professional team with over 40 technical employees. We are not very big but we are very proud of our product quality and we do believe that we can provide the best service. We will continue to satisfy all overseas customers and local friends by high quality products, reasonable prices and the best services.
Address: 126 Xinma Road, xinmalian village, Dalang town, Dongguan City,
Guangdong province, China.
Postal code: 523785
Tel: +86 769 83203300 83011518 83011519
Fax: +86 769 83202200
