| Prod Model: |
J21-63 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
General Punching Machine |
| Power Source: |
Mechanical Drive |
| Structure: |
Rigid Clutch |
| Color: |
Customized |
| Capacity: |
630 |
| Forging Forming Method: |
Mold Forging |

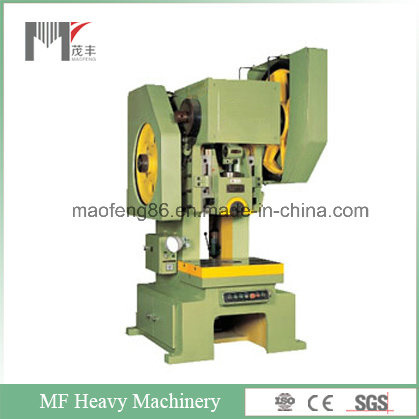

Product Description
Press, press machine, power press, power press machine, punch, punch machine, punching machine
Adopts horizontally placed crankshaft.
Rigid rotated bond clutch.
Manual shut height adjustment with scale display.
1. This stamping press machine is suitable for various cold punching and pressing processing such as blanking, holes
Punching, forming, bending, shallow drawing etc;
2. It is widely used in the industries such as the electronic elements, instruments, Hardware, toys, vehicles, machinery etc.
Structure
2. C-frame machine fuselage, open and tiltable with large working space easy for Discharging the processed works and the waste materials;
3. Rigid clutch, simple structure;
4. Belt-type brake, easy for adjustment;
5. Collapsed-type safety fuse to protect the whole machine from being damaged due to Overloading.
6. Horizontal crankshaft, easy for maintenance
|
|
|
J21-63 |
|
Capacity |
kN |
630 |
|
Nominal Force |
mm |
4 |
|
Slide Stroke |
mm |
80 |
|
SPM |
min-1 |
50 |
|
Max. Die Height |
mm |
250 |
|
Die Height Adjustment |
mm |
50 |
|
Between Slide Center & Frame |
mm |
250 |
|
Bolster (FB×LR) |
mm |
440×670 |
|
Bolster Opening |
mm |
Φ180 |
|
Bolster Thickness |
mm |
70 |
|
Slide Area (FB×LR) |
mm |
240×280 |
|
Shank Hole (Dia.×Dpth) |
mm |
Φ50×70 |
|
Between Columns |
mm |
320 |
|
Motor Power |
kW |
5.5 |
|
Outline Size (FB×LR×H) |
mm |
1440×1100×2430 |
|
Weight |
kg |
4150 |
Established in 2006. MaAnShan Maofeng Heavy Machinery Manufacturing Co., Ltd. It passed authentication of the ISO9001: 2000 quality management system in 2005, and CE certificate in 2008. Dedicate to product development, quality and service improvement, creating greater value for global customers to enhance the international competitiveness of China forging equipment industry.
It mainly produces brand series products: Hydraulic swing/Guillotine Shear, Hydraulic plate bending machine, press, Cutting machine. Three/Four roll bending machine etc, Four series of more than one hundred models. The large electro-hydraulic servo press brake WADF series filled the gap in AnHui province and won good praise. And have exported to Europe and America, Southeast Asia, Middle East such countries.
We firmly believe that through our unremitting effofts, we are able to meet your needs, and achieve win-win cooperation
