Product Description

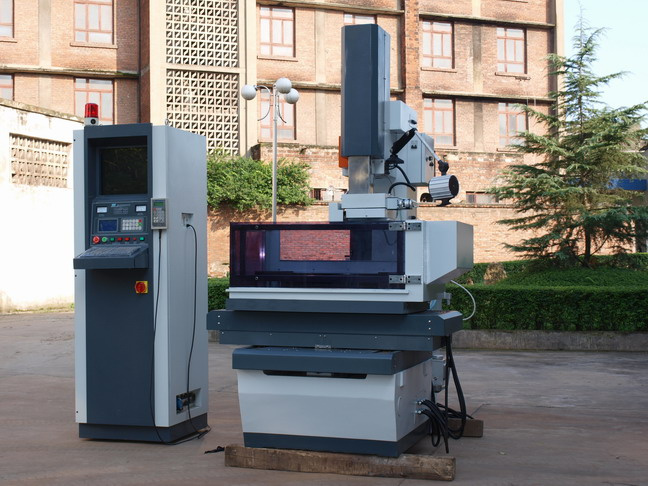

Medium Speed CNC wire-cut machine
Our factory has been specialized in drilling machine, CNC milling machine, wire cutting machine since 1965.
Among which, 3050X16A radial drilling machine and ZY5140 vertical drilling machine were awarded a high-quality certificate by Sichuan Province. Our machines have gained many Chinese patents and are ISO9001/2000, CE/PED certified. You can find our machine tools in many countries, such as Poland, Turkey, Iran, Syria, Lebanon, Saudi Arabia, The United Arab Emitrates, Qatar, Sri Lanka, Thailand, India and South Africa.
Model
Parameter
Unit
FP280
FP350
FP400
FP500
FP630
FP800
Table size
mm
670×485
730×540
910×600
1010×680
1220×795
1410×1010
Table travel
mm
280×360
350×400
400×500
500×630
630×800
800×1000
Z axies travel
mm
400
400
400
400
400
400
Max.workpiece thickness
mm
400
400
400
400
400
400
Max. workpiece size(L X w X H)
mm
660×475×400
720×530×400
900×590×400
1000×670×400
1210×785×400
1400×1000×400
Max.workpiece weight
kg
300
350
400
800
1200
2000
Wire diameter
mm
0.18~0.20
0.18~0.20
0.18~0.20
0.18~0.20
0.18~0.20
0.18~0.20
Machine size
mm
1510×1110×1715
1400×1200×1650
1400×1260×1715
1750×1700×2000
1930×1700×2080
2400×2200×2320
Packing size
mm
1600×1150×2000
1650×1300×2000
1650×1300×2000
2000×2000×2200
2000×2000×2200
2450×2400×2500
Machine weight
T
1.2
1.3
1.4
2.0
3.0
3.8
Power
kw
1.2
1.2
1.5
1.5
2
2
Capacity of dielectric fliud
L
54.375
54.375
54.375
54.375
54.375
54.375
Dielectric fliud tank size
mm
750×290×300
750×290×300
750×290×300
750×290×300
750×290×300
750×290×300
Power supply
380V/50Hz or 220V/50Hz
Main Technical Indexes of the Machine Tool
machining
accuracy
Max.
machining thickness
Cutting pitch/working thickness
Working machining
speed
Roughness
Wire
speed
Numeric control
misact
Single pulse
advancing
accuracy
Repeat positioning accuracy
≤0.01mm
400mm
Z: 6 0 ~12 0 /50
>100
(mm 2 /min)
Ra≤1.0μm
0.8~12
≤0.005
≤0.001
±0.001
500mm
D:30 0 ~60 0 /50
Well Long International Ltd. was set up in Hong Kong to market own machine tools produced by its parent company, Sichuan Zigong Jinrui Machine Tools Co., Ltd. Well Long International Ltd. Also provides after-sales service for its abroad customers.
As a designated manufacturer of China Electrical and Mechanical Ministry, Sichuan Zigong Jinrui Machine Tools Co., Ltd. has been focusing on developing and manufacturing machine tools since 1965. The factory is located in Zigong City_ the Homeland of Dinosaur, Sichuan Province, Southwest of China with a staff of 650 and covers an area of 200, 000 square meters.
Our products cover 16 types totally including radial drilling machine, vertical drilling machine, CNC milling machine, production machine, wire cutting machine and so on, among which, 3050X16A radial drilling machine and ZY5140 vertical drilling machine were awarded a high-quality certificate by Sichuan Province. Our products have gained many Chinese patents and are ISO9001/2000, CE/PED certified.
To support our clients' fast development, Well Long International Ltd. Also provides agricultural machine, vacuum oil-filter, CNG dispenser and parts for CNG automobile.
Our philosophy is to find and meet customers' needs, help our clients gain more.
We value and strive to develop long term relationships with our clients.
Your expectations are what we always pursue.
