North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:
ISO9001:2008
Product Type:
Plastic Pipe
Raw Material:
PVC
Automatic:
Yes
Computerized:
Yes
Type (',For Injection Machine):
Full-Electric Controlled
Kind:
Full-Electric Controlled
Type:
Plastic Auxiliary Equipment
Product Description
1. High quality
2. Good services

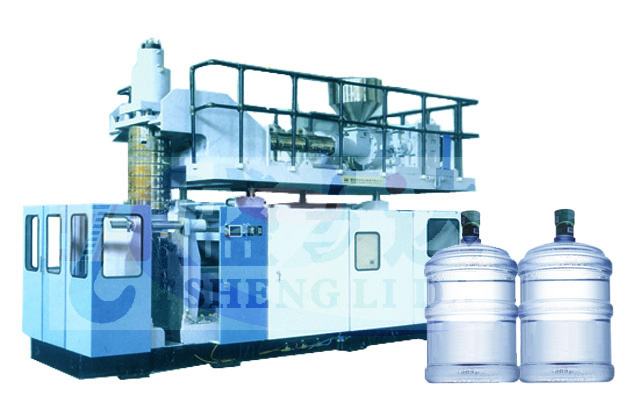

PC 3/5 Gallons Special Vlow Molding Machine>>>LHB82PC LHB82PC Automatic hollow blow molding machine, Equipment and materials meet the wide range and suitable for kinds of production. It's open and close mold systems is stationery open and close mould frame, extrusion system is the hard surface reducer, the Japanese import inverter. Die head system adopt to accumulator die head, all imports of hydraulic valves, seals, electro-hydraulic proportional control. Control System is make of MITSUBISHI PLC, Imported HMI, PLC Automati Temperature Controller, Imported Electronic Parts
Parameter table ( LHB82PC )
category
definition
unit
parameters
Specifications
Max. Product Capacity
L
5 gallons
Output(Cycle Time)
Pc/Hr
60
Machine Dimension
m
6.3*2.3*4.55
Machine Weight
T
11.8
Power
Total Power
Kw
74
Average power consumption
Kw
82
Air Pressure
bar
0.5
Air Consumption
M3/min
0.8
Cooling Water Pressure
bar
38
Extruding unit
Screw Diameter
mm
80
Screw L/D ratio
24
Extruder driving power
Kw
120
No. of Heaters
4
Screw Heating Power
Kw
21.4
HDPE Plasticising Capapcity
Kg/H
30
Accumulator head
Number of heating zone
L
4.4
Power of die heating
KW
21.3
Max die-pin diameter
mm
280
Extruder motor power
4
Clamping System
Clamping Force
KN
200
Platen Size
mm
880*800
Platen Opening Stroke
mm
400-900
Max. Mould Size
mm
600*1000
Mould Thickness
mm
450-510
