| Prod Model: |
High precision plastic mould |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificates: |
AAA Grade Credit Enterprise, ISO9001, ISO14001, Sg |
| Quality-Guaranteed: |
Japanese Standard of QC Management &Euramerican St |
| OEM & ODM Service: |
Acceptable |
| Mould Base Standard: |
Lkm , Hasco , Dme, etc |
| Shaping Mode: |
Injection Mould |
| Application: |
Automation |
| Installation: |
Fixed |
| Process Combination Type: |
Single-Process Mode |
Product Description
Dengfeng Mold (Hongkong) Co., Limited Offer one-stop plastic injection molding, one-stop plastic molding service and one-stop plastic injection service from China, top quality precision one stop plastic injection molding service of China.

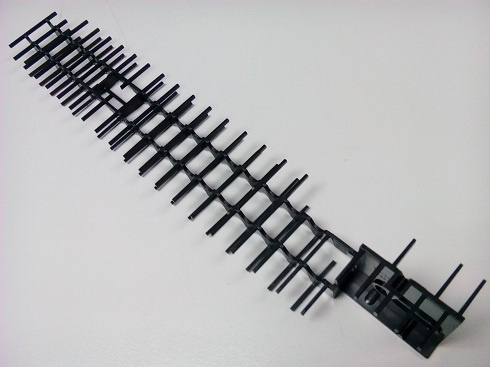

High precision signal mould Details:
1. Critical to fit and/or function( 25 X1);
2. Material to be PA757, processing must be with in Spec.;
3. Color to be natural, shade is unimportant;
4. Draft to be included in dimensional tolerance;
5. Parts to be supplied from vendor in trays, one part per cell to prevent damage to teeth. Parts must never be placed into bins or bags: They must be kept in trays. One part per cell, until individually removed for assembly.
6. Tolerance indicated applies within dimensions indicated: Remainder may be +0.2/-0.03
7. The highlight surface must be smooth.
10. No ejector pin mark, gate, flash, scratches or imperfections permissible on surface indicated;
11. Cavity identification mark to be placed on surface indicated
12. Nominal wall thickness is 2.5, part volume is approximately with 3D /actual;
13. Zero draft on textured surface: Slide required;
14. Target A(a, a2, a3) B(b1, b2) to be established on highest point;
15. The nominal geometry is established by the wireframe data. The following tolerances with
Respect to established datums apply unless otherwise specified:
0 to 25 mm: ± 0.1
>25 to 100 mm: ± 0.2
>100 to 200 mm: ± 0.3
|
Items |
Descriptions |
|
Factory |
Over 80tool technicians, over 30 engineers, tool room 5000 M², Fixed assets: US$20,000,000 |
|
Equipment |
High speed Roder CNC(42,000 RPM), Swiss Charmilles EDM and Wire EDM^ |
|
Steel of Mould |
Imported H13, S136, S7, P20HH, D2, 2344,2738, 8407, 2316, 718H, NK80,^ |
|
Design Software |
Pro/E, UG, AutoCAD, Mold flow etc. |
|
Plastic Resin |
PC, PA66, POM, ABS, PPO, PE, PP, PS, PMMA, TPU, TPE, PPSU, PVC, ^ |
|
Mould Base |
DME, HASCO, LKM^ |
|
Hot Runner System |
Mold-Masters, Husky, Incoe, Synventive, Ewikon, Thermoply, Yudo^ |
|
Inspection Equip. |
CMM, Smart-Scope, Projector, Hardness tester^ |
|
Insert Hardness: |
HRC 48~52 |
|
Tool life |
Soft tool; 300K to 5 Million shots |
|
Lead Time |
From 3 to 10 weeks base on complexity of mould. |
|
Capacity |
Produce 80 moulds/Month, size up to 3000mm. |
|
Packaging |
Fumigation-free wooden box |
DF Mold (HK) Co., Ltd is a famous Chinese mold manufacturer in southeast of China. She grows from 2007 year a small workshop until today. DF-mold has great achievements in mold design and manufacturing: From the starting 5 officers until now more than 100 employees. From 0.5M USD turnover to now more than 20M USD, from 50 SQM workshop to now bigger than 2500SQM building area, from low quality plastic mold to super quality mold… During this years, DF-MOLD has manufactured more than 8000 sets of plastic molds.
From 2007 year, DF-MOLD has established partner relationship with so many companies such as Huawei, RIFENG, Honda, Lexmark etc...During the cooperation with our partners, DF-MOLD has established her quality standard for design and manufacturing. The standard has caused great improvements for quality from that time. DF-MOLD well knows what the European & America requirements for mold, and her teams have gained a very top quality conception and mentality. We upholds the principle of "Using science and technology as the driving force, building of core competitiveness and leader for the industry pioneers". Then we will continue to strive together with our business partner on the basis of mold equality, mutual benefit, and sincere cooperation. As we known "Only by being an honest person and diligent in working, can he build a brand with value" The people of DF-MOLD is basis in southwest of China with a global view to expand its business horizon in industry field. We look forward to be your long term strategic partner.
DF Mold (HK) Co., Ltd is a famous Chinese mold manufacturer in southeast of China. She grows from 2007 year a small workshop until today. DF-mold has great achievements in mold design and manufacturing: From the starting 5 officers until now more than 100 employees. From 0.5M USD turnover to now more than 20M USD, from 50 SQM workshop to now bigger than 2500SQM building area, from low quality plastic mold to super quality mold… During this years, DF-MOLD has manufactured more than 8000 sets of plastic molds.
From 2007 year, DF-MOLD has established partner relationship with so many companies such as Huawei, RIFENG, Honda, Lexmark etc...During the cooperation with our partners, DF-MOLD has established her quality standard for design and manufacturing. The standard has caused great improvements for quality from that time. DF-MOLD well knows what the European & America requirements for mold, and her teams have gained a very top quality conception and mentality. We upholds the principle of "Using science and technology as the driving force, building of core competitiveness and leader for the industry pioneers". Then we will continue to strive together with our business partner on the basis of mold equality, mutual benefit, and sincere cooperation. As we known "Only by being an honest person and diligent in working, can he build a brand with value" The people of DF-MOLD is basis in southwest of China with a global view to expand its business horizon in industry field. We look forward to be your long term strategic partner.
