Table Size:
1250X320mm
Max End Milling:
125 (V)100(H)
T-Slot(Number-Width-Distance)(Mm):
3/14/70
Main Motor(Kw):
2.2
Distance From Spindle To Table(Mm):
110-490
Distance From Spindle To Column(Mm):
0-500
Range Of Spindle Speed:
35-1600
Range Of Longitudinal Cross Travel:
22-555(8rank) 810(Rapid)
Z-Speed Of Table(Mm/Min):
560
Motor For Rapid Device Of Table (X,Y):
750
Automatic Grade:
Semiautomatic
Precision:
High Precision
Controlling Mode:
Artificial
Object:
Hardware
Type:
Worktable Milling Machine
Structure:
Ram
Product Description
High Precision Automatic Milling Machine(X6332A, XQ6226A, XQ6226B)
Specifications
Horizontal Milling Machine
1. High quality, high efficiency Horizontal Milling Machine
2. Long service life Horizontal Milling
Horizontal Milling Machine
Structure characteristics
Can realize, responding to a processing function and milling lie.
Adopts two rotary milling head, spindle rotation in arbitrary Angle and adjust.
Can be used for machining shell adopts and mould.
Responding to the worktable X, Y to maneuver.
Swivel head milling machine
X, Y-auto feeding

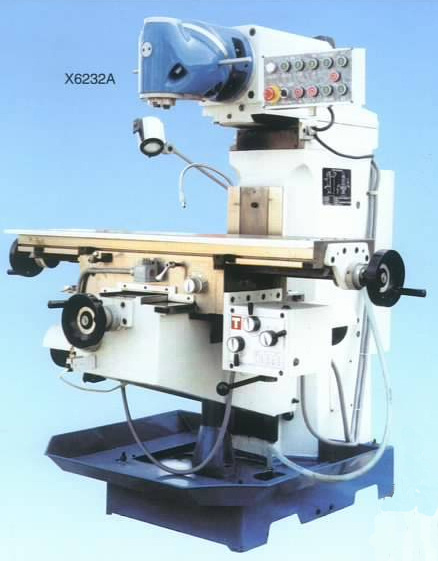

High Precision Automatic Milling Machine
X6232A//62003
Spindle taper
7: 24 ISO40
Distance from horizontal spindle to worktable
mm
110-490
Distance from horizontal spindle to supporting
mm
0-500
Spindle speed range
r/min
35-1600
Swivel angle of swivel head
360 °
Table size
mm
1250 × 320
Table travel(x/y/z)
mm
600/320/380
Range of longitudinal, cross travel
mm/min
22-555(8 steps)540(max. )
Vertical up-down(z axis) speed table
mm/min
560
T-slot NO. /width/distance of rotary table
mm
3/14/70
Main motor
KW
2.2
Motor for rapid device of table
W
750
Motor of lifted table
W
750
Motor of cooling pumps
W
90
Speed of cooling pumps
L/min
25
N. W/G. W.
kg
1320/1420
Overall dimension
mm
1700 × 1560 × 1730
