Advantage:
High Capacity , Direct Pressure, Outside Cooling
Type:
Preform Injection
Automation:
Automatic
Structure:
Horizontal
Computerized:
Computerized
Plastic Type:
Thermoplastic
Product Description
Changshengda Machinery (Zhejiang) Co. Ltd. (CSD) specializes in research and development in Injection Molding Machines for medical and food industry, PET two stage Automatic Stretch Blow Molding Machines, Automatic Extrusion Blow Molding Machines and various types of Plastic Moulds and other hi-tech products.
The machine is with environmental protection, high-precision energy saving.

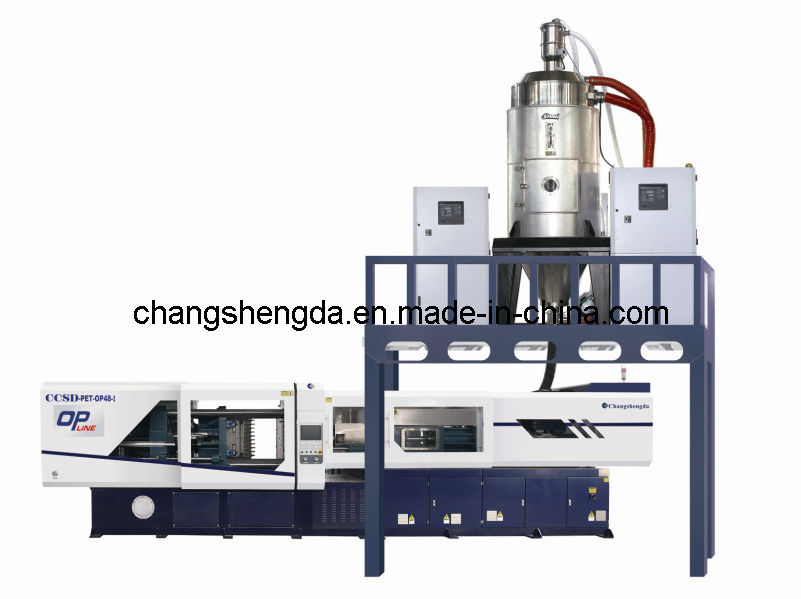

CSD-PET-OP Series, High capacity direct pressure outside cooling production line
Anvantage
1. High speed: Nitrogen assisted injection system
2. Features: Direct pressure mold clamping system, the most stable mold clamping system
3. Environmental protection: No contact between 4 tie bars and moving template, lubricating oil free
4. Precise: Servo valve injection system, 100% accurate in repeated injection
5. Advantage:One station manufacturing for the preform mold and injection molding machine,
CSD-OP SERIES HIGH CAPACITY AND OIL FREE OUTSIDE COOLING INJECTION MOLDING MACHINE TECHNICAL DATA
CSD-PET-OP48-I
CSD-PET-OP48-II
CSD-PET-OP72-I
Design for lighter preform
Design for heavier preform
Design for lighter preform
INJECTION UNIT
SCREW DIAMETER
mm
100
120
120
SCREW L/D RATIO
L/D
25
25
25
SHOT VOLUME(THEORETICAL)
cm 3
2900
3800
3800
SHOT WEIGHT
g
3335
4370
4370
INJECTION PRESSURE
Mpa
875
875
875
PLASTICIZING CAPACITY
g/s
205
303
303
CLAMPING UNIT
MOLD CLAMPING MODE
rpm
Hydraulic Mold Clamp
Hydraulic Mold Clamp
Hydraulic Mold Clamp
CLAMPING FORCE
KN
3000
4200
4200
OPEN STROKE
mm
700
820
820
MAX.OPEN DISTANCE
mm
1250
1500
1500
MAX. MOULD THICKNESS
mm
430
600~800
600~800
SPACE BETWEEN TIE BARS(W×H)
mm
690×690
750×820
750×820
EJECTOR FORCE
KN
120
130
130
EJECTOR STROKE
mm
180
250
250
MOLD
CAVITY(MAX)
PIECE
48
48
72
NECK SIZE
MM
30/25
42
42
MAX.PREFORM WEIGHT
G
32
48
32
MOLD FORM
PNEUMATIC VALVE
HOT RUNNER
PNEUMATIC VALVE
HOT RUNNER
PNEUMATIC VALVE
HOT RUNNER
INSTALLED POWER
MAX. PUMP POWER
KW
92
127
137
ROBOT POWER
KW
28
28
32
HEATER POWER
KW
50
50
70
HEATER POWER
KW
64
80
80
OTHERS
FREEZE WATER
°C
6-12
6-12
6-12
Mpa
0.6-0.8
0.6-0.8
0.6-0.8
L/MIN
600
600
600
COOLING WATER
°C
20-25
20-25
20-25
Mpa
0.3
0.3
0.3
L/MIN
300
300
300
COMPRESSED AIR
Mpa
0.7-0.9
0.7-0.9
0.7-0.9
L/MIN
800
800
800
AIR DRYER
KG/MIN
250-450
250-450
250-450
KG/MIN
300-500
300-500
300-500
KG
2000-3000
2000-3000
2000-3000
MOULD DEHUMIDIFIER
MODEL
MSP-2000
MSP-2000
MSP-2000
°C
-40
-40
-40
OUTPUT
PCS/H
19000
19000
23000
Changshengda Machinery (Zhejiang) Co. Ltd. (CSD) was established in 1992 with a registered capital of $5.2 million USD from Australian sole-ownership enterprises, and boasts a 72, 000 square meter factory zone. The company specializes in research and development in environmental protection, high-precision energy saving injection molding machines for medical and food industry, PET two stage automatic injection stretch blow molding machines, automatic extrusion blow molding machines and various types of plastic moulds and other hi-tech products. Its produce a wide range of goods such as food and beverages packing, plastic goods, pharmaceuticals packing, cleaning products, auto parts, toiletries, home appliances, construction materials, electronics, and so on. CSD's products achieved exceptional sales in South East Asia, the Americas, Eastern Europe, the Middle East, Europe and Africa. Currently the company is working in conjunction with ten of China's most famous brands. CSD's products have gained recognition both inside and outside China as a highly precise, energy-efficient and incredibly streamlined manufacturing company.
CSD boasts a standardized and streamlined production and operations system which has received ISO9001 quality authentication. The company has also been giving the following honorary titles: "Provincial Hi-tech Enterprise R&D Centre", "Zhejiang Province Hi-tech Enterprise", "Zhejiang patent demonstration enterprise", among others. CSD's business ethic primarily focuses on three aspects - one, acting in good faith at all times; Two, making science and technology a priority; And three, thriving on producing superior quality products. The company makes use of advanced design concepts, sophisticated processing equipment and incredibly precise manufacturing methods to meet the needs of high-end clients both inside and outside China.
CSD's products are continuously being innovated in a bib to ensure product quality and secure a reputable corporate image. The company also promotes the service commitment of one station service. The establishment of CSD after-sales centers all around the world not only demonstrates the company's dedication to thorough after-sales support, but also shows a commitment to providing excellent goods at reasonable prices to both new and existing clients.
CSD's employees are driven towards pluralism, standardization and the industrialized development of new technologies, and the company is committed to being an industry leader in plastic goods manufacturing.
