Product Description

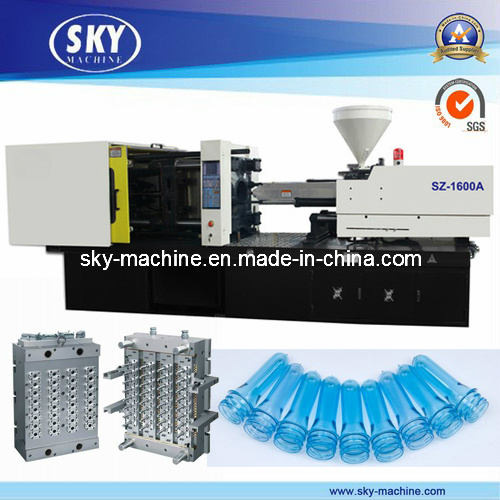

Cold Runner Preform Injection Molding Machine
Clamping Unit 5-point twin toggle clamping system by modular optimization software designing. Strong clamping with rapid and stable, tomeet the strict clamping condition. Mould height adjustment by hydraulic driven gear system with rapid and stable. Automatic mould height adjustment as per the setting clamping force(optional).
Injection Unit BaIanced double injection cylinder technology makes screw to have evenly distributed force during fast injection, Five_star Hydraulic motor with big torque, Ensure the excellent plastic molding condition. Research and develop different screws according to difierent iniection condition, suitable for the progressive demand and greatly improve the injection quality.
Control Unit Imported computer special for Injection Molding Machine with multiple functions and precise control processing. World famous electrical components and high quality circuit hardware with stable and reliable running.
Item
Unit
Data
Max. clamping force
KN
1600
Max. opening distance
mm
460
Space between tie bars(V×H)
mm
480×480
Mold height(min-max)
mm
180-500
Max. daylight
mm
960
Ejector force
KN
45.2
Ejector stroke
mm
115
Ejector quantity
5
Screw diameter
mm
45
50
55
Screw L/D ratio
L/D
23.3
21
19.1
Theoretical shot volume
cm3
358
442
534
Plasticizing weight(PS)
g
326
402
486
Injection pressure
Mpa
219
178
147
Theoretical injection rate(PS)
g
142
175
212
Plasticizing capacity(PS)
g/s
20.1
26.5
34.2
Screw torque
N.m
1250
Max. screw rotate speed
r/min
200
Injection stroke
mm
225
Pump motor power
KW
18.5
Pump pressure
Mpa
16
Heating power
KW
13.6
Heating zone
4
Size(L×W×H)
m
5.3×1.35×1.9
Net weight
t
5.6
International designation
1600-785
