Advantage:
Professional Pet Screw and Barrel
Clamping Force:
200-680t
Type:
Preform Injection
Automation:
Automatic
Structure:
Horizontal
Computerized:
Computerized
Plastic Type:
Thermoplastic
Product Description
Changshengda Machinery (Zhejiang) Co. Ltd. (CSD) specializes in research and development in Injection
Molding Machines for medical and food industry, PET two stage Automatic Stretch Blow Molding
Machines, Automatic Extrusion Blow Molding Machines and various types of Plastic Moulds and other hi-
tech products.
The machine is with environmental protection, high-precision energy saving.

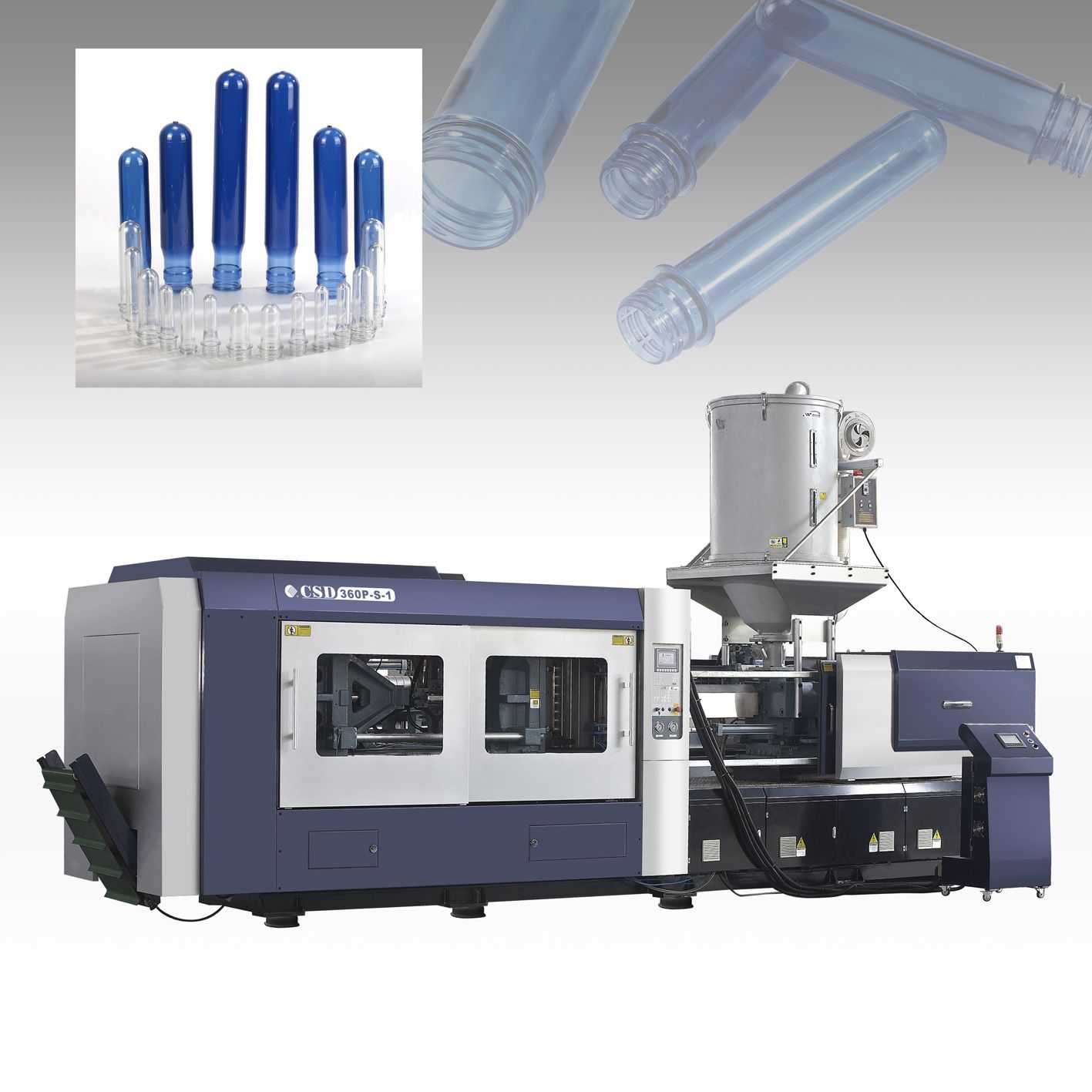

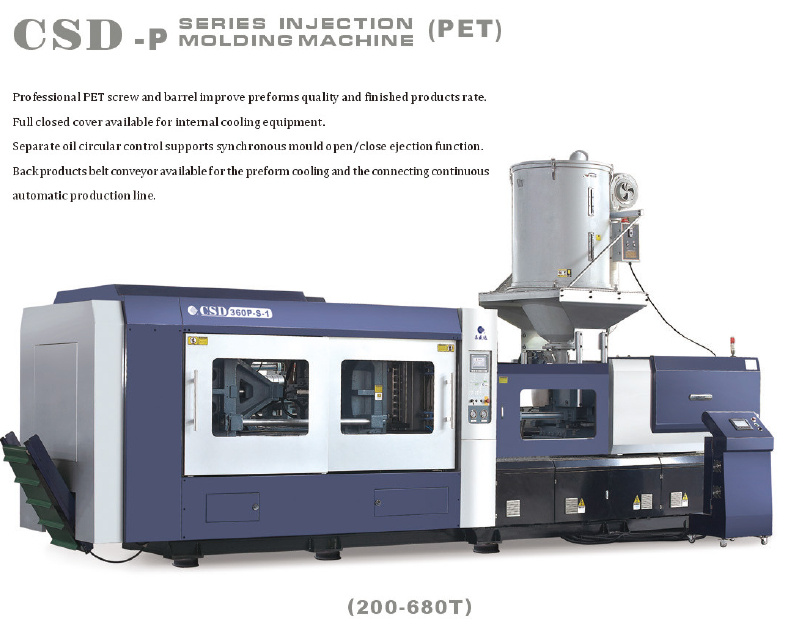

CSD-P SERIES Injection Moulding Machinery (Special design for PET preform production line)
Advantages
1. Professional PET screw and barrel improve preforms quality and finished products rate.
2. Full closed cover available for internal cooling equipment.
3. Separate oil circular control supports synchronous mould open/close ejection function.
4. Back products belt conveyor available for the preform cooling and the connecting continuous automatic
production line.
CSD-P SPECIFICATIONS OF CONVENTIONAL INJECTION MOLDING MACHINE
200P
240P
300P
360P-1
360P-2
450P-1
450P-2
680P-1
680P-2
INJECTION UNIT
SCREW DIAMETER
mm
55
60
70
70
75
90
100
110
120
SCREW L/D RATIO
L/D
22
22
22
22
25
25
25
25
25
SHOT VOLUME(THEORETICAL)
cm 3
594
760
1200
1385
1590
2442
3014
4616
5494
SHOT WEIGHT
g
730
935
1476
1703
1955
3003
3708
5678
6757
oz
26
33
52
60
69
106
131
201
239
INJECTION PRESSURE
Mpa
123
136
145
157
137
177
136
161
136
INJECTION RATE
g/s
279
319
362
413
474
593
863
891
1162
SCREW SPEED
rpm
0~220
0~180
0~180
0~130
0~130
0~120
0~120
0~120
0~120
PLASTICIZING CAPACITY
g/s
37.4
44.9
65.4
79.7
80
90.2
117.8
123.6
143.9
CLAMPING UNIT
CLAMPING FORCE
KN
2000
2400
3000
3600
3600
4500
4500
6800
6800
OPEN STROKE
mm
450
505
570
660
660
710
710
860
860
SPACE BETWEEN TIE BARS(W×H)
mm
460×460
525×525
590×590
680×680
680×680
740×740
740×740
900×900
900×900
MOULD THICKNESS
mm
180~520
200~520
220~580
250~680
250~680
280~730
280~730
320~900
320~900
EJECTOR FORCE
KN
39.6
61.8
61.8
133
133
133
133
281.3
281.3
EJECTOR STROKE
mm
140
140
160
160
160
200
200
260
260
EJECTOR NUMBER
n
5
5
5
13
13
13
13
17
17
OTHERS
HEATER POWER
KW
22.7
24.6
35
46.25
46.25
52
52
72.5
72.5
A
47.4
54.6
60
65.6
72.8
81.6
81.6
113.8
113.8
PUMP MOTOR POWER
KW
22
30
37
45
55
55
74
90
110
A
43
60
86
86
86
131.2
156.3
189
206
MAX PUMP PRESSURE
Mpa
14
14
14
14
14
14
14
14
14
MACHINE DIMESION(L×W×H)
m
5.4×1.6×2.1
5.8×1.6×2.2
6.6×1.8×2.2
8×2.2×2.3
8×2.2×2.3
8.6×2.3×2.4
8.6×2.3×2.4
11.2×2.6×3.8
11.2×2.6×3.8
MACHINE WEIGHT
t
6
8.5
13
17
17.2
19
19.5
40
42
HOPPER CAPACITY
L
50
50
75
100
100
150
150
200
200
OIL BOX CAPACITY
L
400
480
700
1000
1000
1300
1300
1600
1600
