Brand:
Forstec
Model:
Fscm-E3
Size:
According to The Customer's Needs
Mould Life:
5, 000, 000 Shots
Application:
Household Appliances
Product Material:
Aluminium
Process Combination Type:
Single-Process Mode
Method For Making Preforms:
Extrusion Type
Extrusion Blow Molding Mould Application Type:
Automobile manufacturing
Function:
Abrasion Resistance
Certification:
CE
Customized:
Customized
Condition:
New
Warranty:
1 Million Modules
Product Description

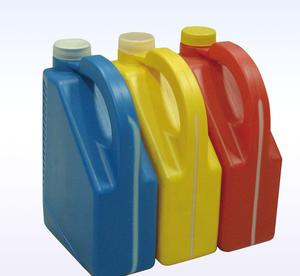

Bottle Blowing Mould
The Mould for PE Extrusion Blow Molding Machine. We make the PE Extrusion moulds in accordance with customers' specific requirements.
Machine Type. The 2L-16L double station blow moulding machine is different from the single station machine in that it has one additional station with high-precision linear guide, covering four major series of FSC-2L, FSC-5L, FSC-10L and FSC-16L. The same as the single station machines, it can be used to produce a wide variety of materials, such as PE, PP, and PA. The largest capacity of the product can be 16L, and its production capacity is 60 to 70% more than the single station machine. In accordance with different type of products, die heads can be changed to achieve multi-type production.
Machine Setting. Clamping------------Double station+Hight-precision guide+large arm cylinder axle Extrusion system--Hard gear surface reducer+Japan inverter Die system----------Central-incoming extrusion die with special steel Hydraulic system--Japan hydraulic valve seal and proportional control Control system----Japan PLC+Imported HMI+PLC automatic
Bottle Blowing Mould for PE Blow Molding Machine (Mold-1cav.),equipment information.
Specification
FSC-2L
FSC-5L
FSC-10L
FSC-16L
Material
PE\PP^
PE\PP^
PE\PP^
PE\PP^
Max.container capacity
L
2
5
10
16
Number of die
set
1\2\3\4
1\2\3\4
1\2\3\4
1\2\3\4
Output
pcs/hr
950×2
750×2
700×2
600×2
Machine Dimension
m
2.7×2.0×2.5
3.4×2.2×2.6
3.9×2.3×3
4.9×4×3.1
Total weight
ton
4
6.5
9.5
10
Accumulator head
FSC-2L
FSC-5L
FSC-10L
FSC-16L
Number of die heating
zone
3
3
3
4
Power of die heating
KW
4.2
5.8
6-7
6-7
Max die-pin diameter
mm
60
80
140
140
Center distance of twin-die
mm
130
160
240
260
Center distance of tri-die
mm
85
110
160
180
Center distance of four-die
mm
65
85
120
130
Clamping Unit
FSC-2L
FSC-5L
FSC-10L
FSC-16L
Clamping force
KN
38
70
110
155
platen opening stroke
mm
135-370
145-510
230-600
230-600
platen size
mm
280×380
320×390
450×490
500×490
Max mould size
mm
300×320
350×370
520×500
600×500
Mould thickness
mm
135-210
155-300
235-380
235-380
Extruder Unit
FSC-2L
FSC-5L
FSC-10L
FSC-16L
Screw diameter
mm
60
70
90
90
Screw L/D ratio
L/D
24:1
24:1
25:1
25:1
Extruding Volume
Kg/hr
60-80
100-120
130-160
130-160
Number of heating zone
zone
3
3
4
4
Extruder heating power
KW
5-6.6
6-8.2
8.2-9.3
8.2-9.3
Extruder driving power
KW
15-18.5
22-37
37-45
37-45
Suzhou Forstec machinery Co., Ltd is located in zhangjiagang city Yangshe economic development zone.
We company is mainly dedicated to the production and trading issues for the blow molding machines. The machine is suitable for the production from 5 ml to 1000 litres of plastic bottles, bucket, cans, tool bag, car parts, unique shape insulating hollow seats, the car, tray, packaging barrels and hollow products. According to the need we can be configured single-mode head, dual mode head, three die head, four die head, six die, single, double, three, four, five, six layer modular top layer. For the users can make suitable for processing various special and special raw materials bottle blowing machines, blow molding blow molding machines. Such as PE, PP, PC, PA, PS, ABS, EVA, PETG, EVOH, PVDC, characterization, PPE, POM, TPE etc products of the production. The company product widely sales Britain, Australia, Brazil and 55 countries and the area, deeply trusted by customers domestic and abroad.
The company always adhere to the "collaboration, and the operation tenet" together with the customer, and the user, a hollow out, realize the development, improve the molding technology profession competitive power. At the same time the company always adhere to the "innovative design, fine manufacture, continued to improve, for global customers with first-class products and service" the quality idea, make product quality, provide satisfying products for market. Strive to continuing innovation and accumulation in outreach, LED by a combination of comprehensive form, the comprehensive strength of the modernization of the strong excellent enterprise.
