North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Clamping Force:
5500kn
Type:
Preform Injection
Automation:
Automatic
Structure:
Horizontal
Computerized:
Computerized
Plastic Type:
Thermoplastic
Product Description

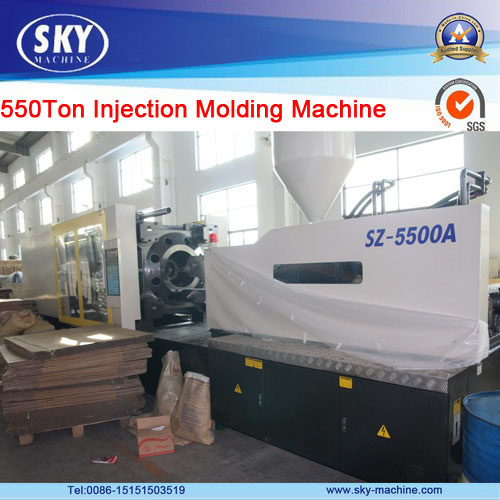

550TON Injection Molding Machine
Clamping Unit
5-point twin toggle clamping system by modular optimization software designing. Strong clamping with rapid and stable, tomeet the strict clamping condition.
Mould height adjustment by hydraulic driven gear system with rapid and stable.
Automatic mould height adjustment as per the setting clamping force(optional).
Injection Unit
BaIanced double injection cylinder technology makes screw to have evenly distributed force during fast injection,
Five_star Hydraulic motor with big torque,
Ensure the excellent plastic molding condition.
Research and develop different screws according to difierent iniection condition, suitable for the progressive demand and greatly improve the injection quality.
Control Unit
Imported computer special for Injection Molding Machine with multiple functions and precise control processing.
World famous electrical components and high quality circuit hardware with stable and reliable running.
Item
Unit
Data
Max. clamping force
KN
5500
Max. opening distance
mm
820
Space between tie bars(V×H)
mm
810×810
Mold height(min-max)
mm
350-820
Max. daylight
mm
1640
Ejector force
KN
150
Ejector stroke
mm
210
Ejector quantity
13
Screw diameter
mm
80
85
90
Screw L/D ratio
L/D
22.3
21
19.8
Theoretical shot volume
cm3
2141
2418
2710
Plasticizing weight(PS)
g
1948
2200
2466
Injection pressure
Mpa
188
167
149
Theoretical injection rate(PS)
g
427
482
541
Plasticizing capacity(PS)
g/s
80
100
118
Screw torque
N.m
5170
Max. screw rotate speed
r/min
150
Injection stroke
mm
425
Carriage push force
KN
175
Pump motor power
KW
55
Pump pressure
Mpa
16
Heating power
KW
33
Heating zone
6
Size(L×W×H)
m
8.4×2.2×2.6
Net weight
t
23.5
International designation
5500-4040
