Clamping Force:
3800kn
Type:
Preform Injection
Automation:
Automatic
Structure:
Horizontal
Computerized:
Computerized
Plastic Type:
Thermoplastic
Product Description

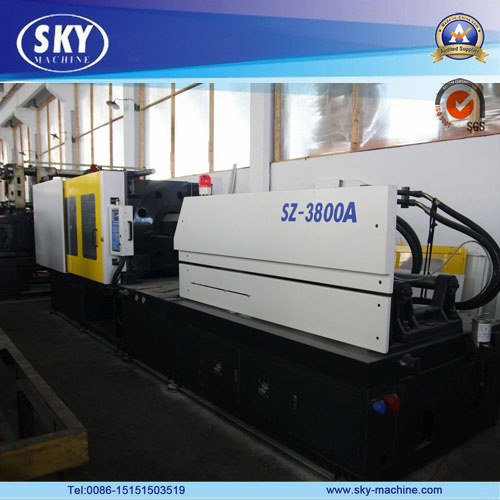

380TON Injection Molding Machine
Clamping Unit
5-point twin toggle clamping system by modular optimization software designing. Strong clamping with rapid and stable, tomeet the strict clamping condition.
Mould height adjustment by hydraulic driven gear system with rapid and stable.
Automatic mould height adjustment as per the setting clamping force(optional).
Injection Unit
BaIanced double injection cylinder technology makes screw to have evenly distributed force during fast injection,
Five_star Hydraulic motor with big torque,
Ensure the excellent plastic molding condition.
Research and develop different screws according to difierent iniection condition, suitable for the progressive demand and greatly improve the injection quality.
Control Unit
Imported computer special for Injection Molding Machine with multiple functions and precise control processing.
World famous electrical components and high quality circuit hardware with stable and reliable running.
Item
Unit
Data
Max. clamping force
KN
3800
Max. opening distance
mm
680
Space between tie bars ( V×H )
mm
680×680
Mold height ( min-max )
mm
250-710
Max. daylight
mm
1390
Ejector force
KN
90.7
Ejector stroke
mm
170
Ejector quantity
13
Screw diameter
mm
65
70
75
Screw L/D ratio
L/D
22.6
21
19.6
Theoretical shot volume
cm 3
1061
1231
1413
Plastici z ing weight(PS)
g
966
1120
1286
Injection pressure
Mpa
203
175
152
Theoretical injection rate(PS)
g
308
357
410
Plastici z ing capacity(PS)
g/s
50.6
60.5
71.5
Screw torque
N.m
2860
Max. screw rotate speed
r/min
150
Injection stroke
mm
320
Carriage push force
KN
110.5
Pump motor power
KW
37
Pump pressure
Mpa
16
Heating power
KW
25
Heating zone
5
Size ( L×W×H )
m
6.8×2.0×2.3
Net weight
t
15
International designation
3800-2150
