Screw Injection Machine:
Plastics Processing Machine
Type:
Injection Blow Molding
Structure:
Horizontal
Plastic Type:
Thermoplastic
Plasticizing Way:
Screw Type
Clamping Way:
Hydraulic & Mechanical
Automation:
Automatic
Computerized:
Computerized
Certification:
CE
Product Description

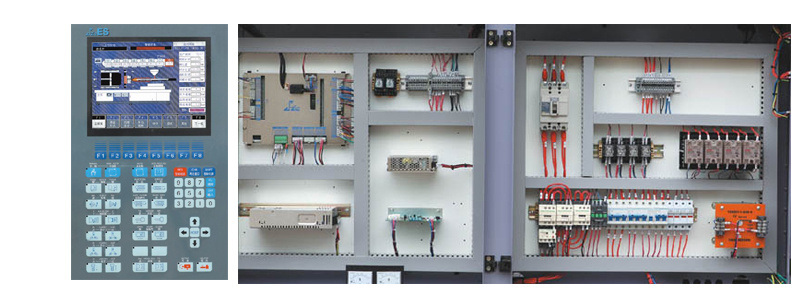

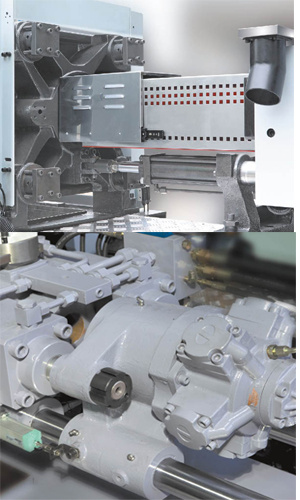

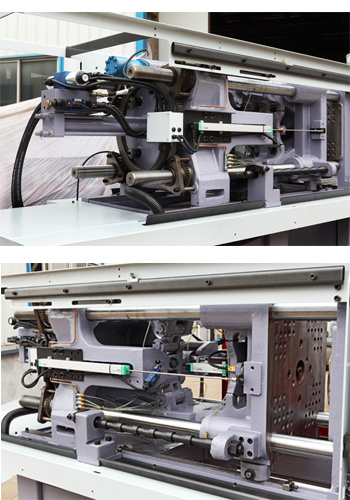

Clamping unit 5-point double toggle clamping system Mechanical &electrical safety devices Low pressure moule protection Controllable multi_stage mold open/close position,pressure&speed Fast moule clamping with differential device Robust casting construcition with strengthened tie bar for maximum service life and best molding results Automatic mould height adjustement Variable mokes of djector movement Automatic central lubrication Injection unit Double drive cylinder injection system with symmetrical oil circuit Controllable multi-stage injection pressure,speed and position Controllable multi-stage dwell pressure,speed and time Controllable multi-stage charging speed ,position and time PID barrel temperature control Screw plasticizing back pressure control Suck back function Plasticizing cold start prevention Screw speed inspection Self purging function Efficient plasticizing device with strong torque hydraulic motor Control System Japanese controller with 10 inch LED color screen. Mold data storage Linear transducer forclamping/injection/ejection control English ,Spanish,Portuguese,Russsian,Arabic and other language options Hydraulic system Efficient and sound reduced hydraulic sustem Weldless oil circuit Hydtaulic proportional control Hydraulic elements by well-known brand with high reliability and long service life Oil temperature alarm
YH130
INJECTION UNIT
T
A
B
C
Sxrew diameter mm
32
36
40
45
Screw stroke mm
200
200
200
200
Screw L:D L/D
24
23
20.5
18.2
Shot volume cm3
161
203
251
318
shot weight Ps g
145
183
226
286
injection pressure Mpa
264
208
169
133
dwell pressure kgf/cm2
2689
2125
1721
1360
injection speed mm/sec
120
120
120
120
injection rate cm3/sec
96.5
122.1
150.7
190.8
screw rotate speed rpm
240
240
240
240
nozzle sealing force KN
38.2
nozzle advancestroke mm
30
heater power KW
7.84
CLAMPING UNIT
clamp force KN
1300
toggle steoke mm
380
space between tie bars mm
410×410
max.mould height mm
450
min.mould height mm
150
ejector number pc
5
ejector force KN
42.7
ejector stroke mm
130
OTHERS
specialpump pressure Mpa
21
standrd pump pressure Mpa
18
machine dimensions(L×W×H)m
4.5×1.0×1.72
Machine weight T
4
oil tank capacity L
200
pump motor power KW
13
