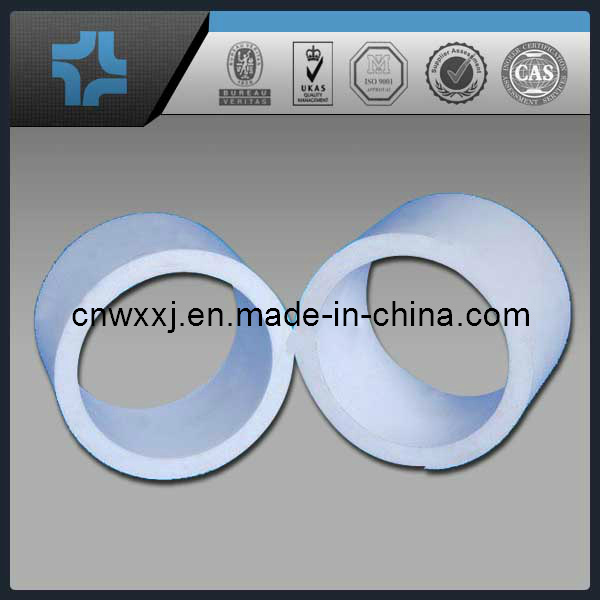

Teflon Pipe
PTFE is made by polymerization of tetrafluoroethylene polymer, which has excellent chemical stability, corrosion-resistance, sealing, self-lubrication, non-stick, electrical insulation and good anti-aging endurance, excellent high and low temperature capability.
As engineering plastics can be made of PTFE tube, rod, strip, sheet, film and so on. Generally used in high required performances of corrosion-resistant pipes, containers, pumps, valves and system radar, high frequency communications equipment, radio equipment.
PTFE tubes available,
(a) O. D. 1mm-25mm and wall thickness 0.1mm-2.5mm
Are extruded from imported dispersion PTFE resin
(b) O. D. 25mm-200mm and wall thickness 1.5mm-8mm plunger-extruded from suspension PTFE
(c) O. D. 25mm-1200mm and wall thickness 5mm-500mm die-pressed / moulded. Min Length: 100mm, Max. Length: 300mm
|
Type |
Specification |
|
Outside Diameter(mm) |
Wall Thickness(mm) |
Length(mm) |
|
Pressed Pipe |
1-25 |
0.1-2.5 |
Produced under requirements |
|
Extruded Pipe |
25-200 |
1.5-8 |
Produced under requirements |
|
Die Pressed Pipe |
25-1800 |
5-500 |
100-300 |
|
|
|
|
|
|
|
|
|
|
|
Properties |
Unit |
Result |
|
|
Apparent Density |
g/cm³ |
2.10-2.20 |
|
|
Tensile Strength(mm) |
Mpa |
20 |
|
|
Ultimate elogation(min) |
% |
200 |
|
|
Residual Lubrication Content(max) |
% |
0.5 |
|
|
Dialectric Strength(min) |
KV/mm |
10 |
|
|
|
|
|
|
|
|
|
|
|
|
Fitting |
|
|
|
|
Glass Fiber |
Increases compressive strength, rigidity and wear. |
|
Reduces creep and cold flow |
|
Minimal effect on chemical and electrical properties |
|
Carbon: |
Increases compressive strength, hardness, wear, and load properties. |
|
Good chemical resistance |
|
Various types and amounts of carbon can be added to alter conductivity |
|
Molybdenum Disulfide |
Increases hardness, stiffness, and wear |
|
Minimal effect on chemical and electrical properties |
|
Bronze: |
Increases hardness and wear resistance |
|
Increases dimensional stability and compressive strength |
|
Not suitable for corrosive or electrical applications |
Wuxi Xiangjian PTFE Product Co., Ltd. is the member of China fluorine-silicone material industry association and the committee member of the filler static sealing committee of China's liquid air sealing association. We produce polytetrafluoroethylene pipe, stick, plate, film, oil & oil free crude materials, as well as belts, packing sets and various rubber products. We are the only manufacturer of polytetrafluoroethylene products in Wuxi.
